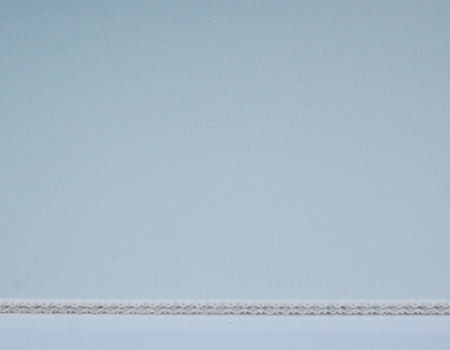

White PU(Polyurethane) Conveyor Belt Thickness 1.5mm Cinta transportadora de PU(poliuretano) Blanco Espesor 1.5mm Correias Transportadoras PU(Poliuretano) Branco Espessura 1.5mm Convoyeur à courroie PU(polyuréthane) Blanc épaisseur 1.5mm Ленты конвейерные PU белый (ПВХ) полиуретан толщина 1.5mm Weiß PU(Polyurethan) Fördergurte 1.5mm موٹائی کنویئر سفید PUpolyurethane کے1.5mm | สาย พาน ลำ เลียง PU(ยูรีเทน) ขาว ความหนา 1.5mm Băng tải PU(polyurethane) trắng bề dầy 1.5mm Beyaz PU(poliüretan) konveyör bant kalınlık 1.5mm 화이트 PU (폴리 우레탄) 컨 베이어 벨트 두께 1.5mm Putih Penghantar Tali Pinggang PU(poliuretana) Ketebalan 1.5mm 白PU(ポリウレタン) 搬送コンベヤベルト 厚さ1.5mm পরিবাহক বেল্ট PU(নমনীয়) সাদা বেধ 1.5mm |
![]() | ![]() |
The Importance Of Using Food Conveyor Belts 1. The food conveyor belt is a polyurethane conveyor belt with a specially treated polyester composite fabric as the bearing frame and coated with polyurethane resin as the bearing surface. 2. The food conveyor belt has the high-strength tensile strength, good bending properties, and is not easy to deform. 3. The food conveyor belt has good oil resistance and is easy to clean, especially when the conveyor belt is oily food. 4. The food conveyor belt also has the good cutting resistance, abrasion resistance, physical aging resistance, and durability. 5. The food safety is related to everyone's health. The food conveyor belt is made of non-toxic materials, non-toxic, odorless, and has a smooth surface. The main material is PU type, which fully meets the US FDA food hygiene standards, direct contact with food. La Importancia De Utilizar Cintas Transportadoras De Alimentos 1. La cinta transportadora de alimentos es una cinta transportadora de poliuretano con un tejido compuesto de poliéster especialmente tratado como bastidor de apoyo y recubierto con la resina de poliuretano como el superficie de apoyo. 2. La cinta transportadora de alimentos tiene una alta resistencia a la tracción, buenas propiedades de flexión y no es fácil de deformar. 3. La cinta transportadora de alimentos tiene la buena resistencia al aceite y es fácil de limpiar, especialmente cuando la cinta transportadora es comida aceitosa. 4. La cinta transportadora de alimentos también tiene la buena resistencia al corte, resistencia a la abrasión, resistencia física al envejecimiento y durabilidad. 5. La seguridad alimentaria está relacionada con la salud de todos. La cinta transportadora de alimentos está hecha de materiales no tóxicos, no tóxicos, inodoros y tiene una superficie lisa. El material principal es el tipo PU, que cumple totalmente con las normas de higiene alimentaria de la FDA de EE. UU., contacto directo con los alimentos. | |||
| GENERAL CHARACTERISTICS | |||
| *anti-oil anti-grease *moisture proof *low extension *anti-corrosion *Non-toxic, non-odorless *high tensile strength *anti high and low temperature *strong bonded, no shedding | |||
| BELT Structure | |||
| No. of Ply: | 2 | Minimum Pulley Diameters | |
| Fabric Features | 1 ply fabric, 1 ply pvc | Positive Operation: 30mm | |
| Top Surface | PU | Reverse Operation: 60mm | |
| -Color | White | ||
| -Thickness | 0.6 mm | Conveyor Frame Characteristics | |
| -Hardness | 90 Shore A | Trundle Bed: YES | |
| Surface | Q Struc | Metal Groove: YES | |
| Bottom Surface | Conductive fabric | Plate Roller to Support: YES | |
| Total Thickness | 1.5 mm | Inverted Wheel to Support: NO | |
| Weight | 1.0 kg/㎡ | Special Mixed Inverted Wheel Groove: NO | |
| Anti-static | Yes | Reverse Slide: YES | |
| Maximum width | 3500mm | ||
| Belt Strength | Joint Methods | ||
| fracture tension: 160 daN / cm | hot Melt: FOF | ||
| recommended maximum working tension: 12 daN / cm | buckle: K1 B2/Z or Inox | ||
| working tension under extension rate of 1%: 8 daN / cm | |||
| Operating Temperature: -20℃ to 80℃ | Bottom Cover Friction Coefficient | ||
| temperature± 30% influenced by working time, weight of material, different factors in the environment | Stainless steel, surface: 0.18 | ||
| Stainless steel, semi-glossy: 0.18 | |||
| Stainless steel, heat lamination surface: 0.20 | |||
| Scroll Plate: 0.18 | |||
| Glossy plastic board: 0.23 | |||
| Special Executions | |||
The test data under the environment: + 25 ℃, 70% relative humidity. And in other circumstances, the data are subject to change, EXQUISITE INTL does not specify more. | |||
