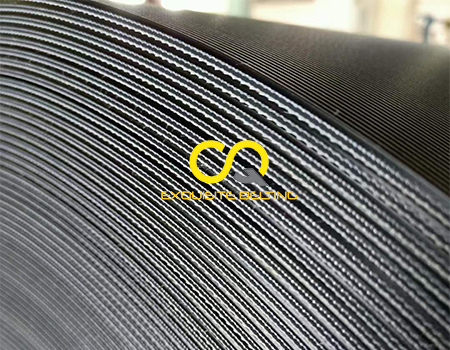

Black Straight-grooved PVC Conveyor Belt 3.6mm

• The 3.6mm black straight-grooved PVC conveyor belt is a general-purpose, anti-slip, and economical conveyor belt.

• Its core advantage lies in providing reliable friction and stability for the horizontal or slightly inclined conveying of regular

  packaged goods and unitized cargo.

• With its anti-slip, durable, and easy-to-maintain characteristics, it is widely used in automated equipment requiring stable

  conveying and anti-slip treatment, making it an ideal choice for modern industrial production lines.

I. Main Features:

1. Superior Material:

• Made of high-quality PVC (polyvinyl chloride) material, it has good wear resistance, tear resistance, and flexibility.

• The black formula typically includes UV protectants and antioxidants to enhance weather resistance.

2. Straight-Grip Surface Design:

• The surface features longitudinal straight stripes, increasing friction and effectively preventing materials from slipping

  or shifting during conveying.

• Suitable for inclined conveying or applications requiring anti-slip properties.

3. Moderate Thickness (3.6mm):

• With a thickness of 3.6mm, it balances strength and flexibility, suitable for conveying small to medium loads.

• It ensures sufficient durability while facilitating operation on smaller diameter rollers.

4. Optional Antistatic/Conductive:

Some models can be equipped with antistatic components, suitable for static-sensitive environments such as electronics

and pharmaceuticals.

5. Easy to Clean and Hygienic:

Smooth surface, non-absorbent, easy to clean, meeting hygiene standards of the food and pharmaceutical industries

(some grades are FDA certified).

6. Chemical Resistance:

Resistant to common chemicals such as weak acids, weak alkalis, and greases, suitable for various industrial environments.

7. Smooth Operation and Low Noise:

Low operating noise, suitable for locations with high environmental requirements.

8. Multiple Connection Methods:

Can be connected via mechanical joints, heat fusion, or cold bonding, providing strong connections and a long service life.

II. Typical Application Equipment:

1. Packaging Machinery:

Automatic case packers, case sealing machines, baling machines, wrapping machines, etc., used for transporting cartons,

bottles, cans, and bagged products.

2. Food Processing Production Lines:

• Baking equipment, candy packaging lines, fruit and vegetable sorting lines, frozen food conveyors, etc.

• The straight-line anti-slip design helps to stably transport slippery items.

3. Logistics Sorting Systems:

Express sorting lines, automatic sorting machines. Straight lines enhance grip and prevent packages from slipping.

4. Electronic Assembly Lines:

PCB board conveyors, electronic product assembly lines. Anti-static models can be selected to prevent static electricity damage

to components.

5. Printing and Papermaking Equipment:

Used for conveying lightweight materials such as paper, labels, and films. Straight lines help prevent slippage.

6. Pharmaceutical and Cosmetic Production Lines:

Medicine bottle filling, medicine box packaging, cosmetic bottle conveying, meeting GMP hygiene requirements.

7. Inclined Conveyors:

In conveying scenarios with a certain slope, the straight-line structure significantly improves anti-slip performance.
