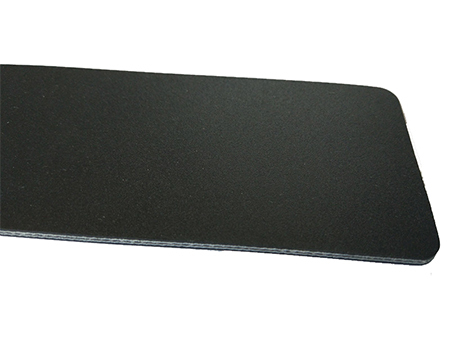

Black PU Conveyor Belt 0.8mm
Black PU Conveyor Belt 0.8mm
- Detail
- Parameters
Black PU Conveyor Belt 0.8mm
#Manufacturer #PVCconveyorbelts #conveyorbelts #conveyor #beltconveyor #logisticconveyor #Automation #conveyorsystem #guide
#cleat #skirt #TsinghuaMBA #Tsinghuauniversity
We own the mature coating process and rolling process, master the series of products modified and many formulations, the manufacturing process temperature, tension and other process parameters, so conveyor belts have the longer service life.
BEIJING EXQUISITE INTERNATIONAL all the time insist on selecting durable polyester fabric as the core and environmental new PU as material and special unique formulations, thus makes the belt work life plus 5%-15%, it is outstandingly reducing the user's cost and increase the productivity rate 10%-20%, guarantee user’s projects.
| GENERAL CHARACTERISTICS | |||
| *anti-oil anti-grease *moisture proof *low extension *anti-corrosion *Non-toxic, non-odorless *high tensile strength *anti high and low temperature *strong bonded, no shedding | |||
| BELT Structure | |||
| No. of Ply: | 2 | Minimum Pulley Diameters | |
| Fabric Features | 2 ply fabric, 2 ply pvc | Positive Operation: 70mm | |
| Top Surface | PU | Reverse Operation: 90mm | |
| -Color | Black | ||
| -Thickness | 0.4 mm | Conveyor Frame Characteristics | |
| -Hardness | 92 Shore A | Trundle Bed: YES | |
| Surface | Q Struc | Metal Groove: YES | |
| Bottom Surface | Conductive fabric | Plate Roller to Support: YES | |
| Total Thickness | 2.0 mm | Inverted Wheel to Support: NO | |
| Weight | 2.3 kg/㎡ | Special Mixed Inverted Wheel Groove: NO | |
| Anti-static | Yes | Reverse Slide: YES | |
| Maximum width | 3500mm | ||
| Belt Strength | Joint Methods | ||
| fracture tension: 180 daN / cm | hot Melt: FOF | ||
| recommended maximum working tension: 14 daN / cm | buckle: K1 B2/Z or Inox | ||
| working tension under extension rate of 1%: 10 daN / cm | |||
| Operating Temperature: -20℃ to 80℃ | Bottom Cover Friction Coefficient | ||
| temperature± 30% influenced by working time, weight of material, different factors in the environment | Stainless steel, surface: 0.18 | ||
| Stainless steel, semi-glossy: 0.18 | |||
| Stainless steel, heat lamination surface: 0.20 | |||
| Scroll Plate: 0.18 | |||
| Glossy plastic board: 0.23 | |||
| Special Executions | |||
The test data under the environment: + 25 ℃, 70% relative humidity. And in other circumstances, the data are subject to change, EXQUISITE INTL does not specify more. | |||
