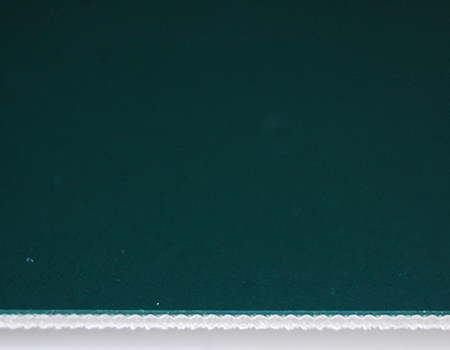

Dark Green PU Conveyor Belt 2mm
Dark Green PU Conveyor Belt 2mm
- Detail
- Parameters
Green PU(Polyurethane) Conveyor Belt Thickness 2.0mm Cinta transportadora de PU(poliuretano) Verde Espesor 2.0mm Correias Transportadoras PU(Poliuretano) Verde Espessura 2.0mm Convoyeur à courroie PU(polyuréthane) Vert épaisseur 2.0mm Ленты конвейерные PU зеленый (ПВХ) полиуретан толщина 2.0mm Grün PU(Polyurethan) Fördergurte 2.0mm موٹائی کنویئر سبز PUpolyurethane کے2.0mm | สาย พาน ลำ เลียง PU(ยูรีเทน) สีเขียว ความหนา 2.0mm Băng tải PU(polyurethane) màu xanh lá bề dầy 2.0mm Yeşil PU(poliüretan) konveyör bant kalınlık 2.0mm 녹색 PU (폴리 우레탄) 컨 베이어 벨트 두께 2.0mm Hijau Penghantar Tali Pinggang PU(poliuretana) Ketebalan 2.0mm 緑PU(ポリウレタン) 搬送コンベヤベルト 厚さ2.0mm পরিবাহক বেল্ট PU(নমনীয়) সবুজ বেধ 2.0mm |
EXQUISITE INTL all the time insist on selecting durable polyester fabric as the core and environmental new PVC as material as well as special unique formulations, thus makes the belt work life plus 5%-15%, it is outstandingly reducing the user's cost and increase the productivity rate 10%-20%, guarantee user's projects. Durable performance in the electronics, print, etc. | |||
| |||
| GENERAL CHARACTERISTICS | |||
| *anti-oil anti-grease *moisture proof *low extension *anti-corrosion *Non-toxic, non-odorless *high tensile strength *anti high and low temperature *strong bonded, no shedding | |||
| BELT Structure | |||
| No. of Ply: | 2 | Minimum Pulley Diameters | |
| Fabric Features | 2 ply fabric, 2 ply pvc | Positive Operation: 70mm | |
| Top Surface | PU | Reverse Operation: 90mm | |
| -Color | Dark green | ||
| -Thickness | 0.4 mm | Conveyor Frame Characteristics | |
| -Hardness | 92 Shore A | Trundle Bed: YES | |
| Surface | Q Struc | Metal Groove: YES | |
| Bottom Surface | Conductive fabric | Plate Roller to Support: YES | |
| Total Thickness | 2.0 mm | Inverted Wheel to Support: NO | |
| Weight | 2.3 kg/㎡ | Special Mixed Inverted Wheel Groove: NO | |
| Anti-static | Yes | Reverse Slide: YES | |
| Maximum width | 3500mm | ||
| Belt Strength | Joint Methods | ||
| fracture tension: 180 daN / cm | hot Melt: FOF | ||
| recommended maximum working tension: 14 daN / cm | buckle: K1 B2/Z or Inox | ||
| working tension under extension rate of 1%: 10 daN / cm | |||
| Operating Temperature: -20℃ to 80℃ | Bottom Cover Friction Coefficient | ||
| temperature± 30% influenced by working time, weight of material, different factors in the environment | Stainless steel, surface: 0.18 | ||
| Stainless steel, semi-glossy: 0.18 | |||
| Stainless steel, heat lamination surface: 0.20 | |||
| Scroll Plate: 0.18 | |||
| Glossy plastic board: 0.23 | |||
| Special Executions | |||
The test data under the environment: + 25 ℃, 70% relative humidity. And in other circumstances, the data are subject to change, EXQUISITE INTL does not specify more. | |||
